One set includes one pcs of teeth, one pcs of adapter/holder and one pcs of pin, you can choose them freely according to your purchasing requirement.

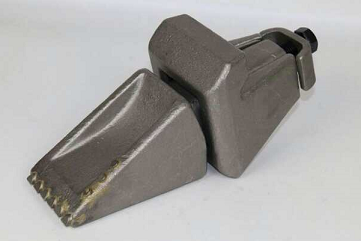

Flat teeth:
Flat teeth are used as cutting teeth on augers, drilling buckets.The range of cutting teeth comprises several types for different areas of application.
Alloy steel Body, made by material 42CrMo,heat treatment with 40-44HRC hardness, has high toughness and wearable character.Tip with above 50 HRC hardness is made from Low press Sintered,and Suitable Grade Selected according to the Target Projects,Which are to make sure the good performance during working.
The teeth adapt to the machine with all the performance features such as a high feed rate,a long service life and short tool changing times.Together with the parts supply assurance,a high daily production volume,and above-average economy is guaranteed.

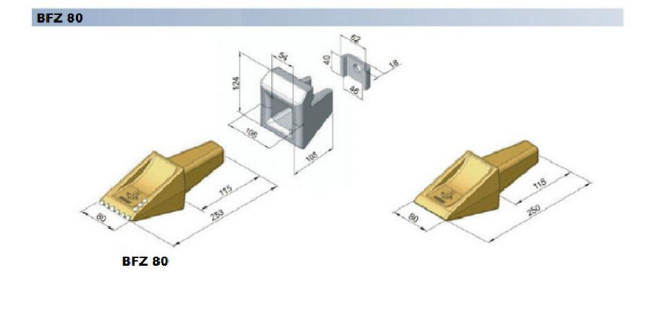

Tooth Holder:
The tooth holder is optimally adapted to the tooth series. It guarantees easy tooth replacement (ejector port). Its compact construction facilitates the execution of complicated cutting geometries and optimal adjustment of tooth position.
1. High wear resistance and efficiency and life due to the optimized that facilitates rotation
(this results in even wear)
2. Tungsten carbide inserts made of high quality materials
3. Round shank tools are easily replaced or exchanged because of a special groove designed
into the tooth
4. Good wear protection of the tooth holders due to wide flanges on the round shank chisels.
All exposed surfaces are studded with tungsten carbide inserts.
Flat teeth are used as cutting teeth on augers, drilling buckets.The range of cutting teeth comprises several types for different areas of application.
